轴径
Shaft
Diameter
|
轴承型号
Bearing Designation
|
重量
Mass
近似
Approx
|
外形尺寸
BoundaryDimensions
|
额定负荷
BasicLoadRating
|
极限转速
Limiting Speed
|
|

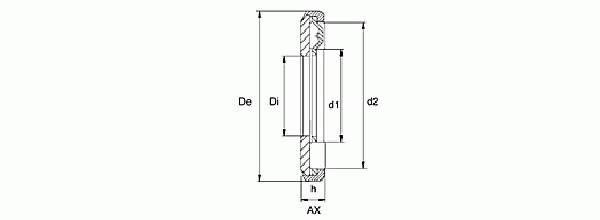

AX
Baureihe dunn
|
AX
Baureihe dick
|
Di
|
De
|
h
|
d1
|
d2
|
动
Dynamic
|
静
Static
|
Grenzdrehzahl
min-1
|
|
mm
|
g
|
mm
|
N
|
|
5
|
AX 5 13
|
AX 3.5 5 13
|
1.3
2.3
|
5
5
|
13
13
|
2.3
3.5
|
6.3
6.3
|
10.9
10.9
|
3000
3000
|
5700
5700
|
25000
25000
|
|
6
|
AX 6 14
|
AX 3.5 6 14
|
1.4
2.4
|
6
6
|
14
14
|
2.3
3.5
|
7.3
7.3
|
11.9
11.9
|
3150
3150
|
6350
6350
|
22000
22000
|
|
7
|
AX 7 15
|
AX 3.5 7 15
|
1.7
2.9
|
7
7
|
15
15
|
2.3
3.5
|
8.3
8.3
|
12.9
12.9
|
3550
3550
|
7600
7600
|
22000
22000
|
|
8
|
AX 8 16
|
AX 3.5 8 16
|
1.7
3
|
8
8
|
16
16
|
2.3
3.5
|
9.3
9.3
|
13.9
13.9
|
3700
3700
|
8300
8300
|
22000
22000
|
|
9
|
AX 9 17
|
AX 3.5 9 17
|
2.1
3.5
|
9
9
|
17
17
|
2.1
3.5
|
10.3
10.3
|
14.9
14.9
|
4050
4050
|
9500
9500
|
19000
19000
|
|
10
|
AX 10 22
|
AX 4 10 22
|
4
6.5
|
10
10
|
22
22
|
2.8
4
|
12
12
|
18.6
18.6
|
5000
5000
|
10900
10900
|
15500
15500
|
|
12
|
AX 12 26
|
AX 4 12 26
|
6
10
|
12
12
|
26
26
|
2.8
4
|
15
15
|
22.6
22.6
|
6900
6900
|
17700
17700
|
13000
13000
|
|
13
|
AX 13 26
|
AX 4 13 26
|
6
9.8
|
13
13
|
26
26
|
2.8
4
|
15
15
|
22.6
22.6
|
6900
6900
|
17700
17700
|
11300
11300
|
|
15
|
AX 15 28
|
AX 4 15 28
|
6.9
9
|
15
15
|
28
28
|
4
|
17
|
24.6
|
7400
|
20000
|
11500
|
|
17
|
AX 17 30
|
AX 4 17 30
|
7.6
10
|
17
17
|
30
30
|
2.8
4
|
19
19
|
26.6
26.6
|
7800
7800
|
22000
22000
|
10500
10500
|
|
19
|
AX 19 32
|
AX 4 19 32
|
8.6
13
|
19
19
|
32
32
|
2.8
4
|
21
21
|
28.6
28.6
|
8000
8000
|
23300
23300
|
10000
10000
|
|
20
|
AX 20 35
|
AX 5 20 35
|
10.2
18
|
20
20
|
35
35
|
2.8
5
|
22
22
|
31.6
31.6
|
11800
11800
|
39000
39000
|
9000
9000
|
|
25
|
AX 25 42
|
AX 5 25 42
|
11.5
25
|
25
25
|
42
42
|
2.8
5
|
27.7
27.7
|
37.4
37.4
|
13300
13300
|
49000
49000
|
7500
7500
|
|
27
|
AX 27 44
|
|
12.1
|
27
|
44
|
2.8
|
30
|
39.5
|
13700
|
52000
|
7200
|
|
30
|
AX 30 47
|
AX 5 30 47
|
13.7
29
|
30
30
|
47
47
|
2.8
5
|
32.7
32.7
|
42.4
42.4
|
14500
14500
|
57000
57000
|
6500
6500
|
|
35
|
AX 35 52
|
AX 5 35 52
|
18.5
35
|
35
35
|
52
52
|
2.8
5
|
37.2
37.2
|
49
49
|
18900
18900
|
84000
84000
|
5500
5500
|
|
AX 35 53
|
AX 5 35 53
|
19.3
36
|
35
35
|
53
53
|
2.8
5
|
37.2
37.2
|
49
49
|
18900
18900
|
84000
84000
|
5500
5500
|
|
40
|
AX 40 60
|
AX 5 40 60
|
23.9
45
|
40
40
|
60
60
|
2.8
5
|
43
43
|
54.9
54.9
|
20400
20400
|
96000
96000
|
5000
5000
|
|
45
|
AX 45 65
|
AX 5 45 65
|
24.7
50
|
45
45
|
65
65
|
2.8
5
|
48
48
|
59.9
59.9
|
21800
21800
|
109000
109000
|
4500
4500
|
|
| |
|
|
| |
|
|
| |
|
